wireface-core

import { createFace } from '@wireface/core';

const face = createFace(document.querySelector('canvas'));
await face.useSkin('dracula', { sweep: 1.6 });     // scans down onto the wireframe
face.express('amused');
await face.say(await face.clip('dracula'));        // lip-synced; add { audioContext } to hear it

Install#

Install it from GitHub with npm (npm install github:compsmart/wireface-core) and import @wireface/core, or copy the folder in or add it as a git submodule and import src/index.js. The details, and how to try the demo first, are in Install wireface-core.

The package's entry points are @wireface/core plus the subpaths /config, /expressions, /skins, /speech, /engine/*, /assets/* and /face.schema.json.

Pages must be served over http(s), because browsers don't load ES modules from file://. npm start runs a tiny static server; npx serve, python -m http.server or any web server works too.

Bundlers#

Core finds its files relative to its own modules (new URL('../assets/', import.meta.url)). Bundlers move modules around, so tell the face where its assets are. This was tested with Vite, in both the dev server and the production build:

1. Copy the assets into your static folder, for example node_modules/@wireface/core/assets to public/wireface/. Add a postinstall script, or copy them once and commit them.
2. Pass that folder to the face: createFace(canvas, { assets: '/wireface/' }).
3. Vite only: keep it out of dependency pre-bundling, or the teeth images go missing in dev.

// vite.config.js
export default { optimizeDeps: { exclude: ['@wireface/core'] } };

Other bundlers (webpack 5, Rollup, esbuild) handle new URL('./file.png', import.meta.url) for the teeth images, and the same assets option applies. If the assets aren't where the face looks, the error names the URL it tried, for example the skin list not found at http://localhost:5173/node_modules/.vite/deps/assets/skins/skins.json (got a page, not JSON).

Your first face#

<canvas id="face"></canvas>
<style> #face { width: 480px; height: 520px; } </style>
<script type="module">
  import { createFace } from './wireface-core/src/index.js';
  const face = createFace(document.getElementById('face'));
  await face.useSkin('mei');
</script>

That gives you Mei, who blinks, breathes, glances about and follows the pointer. Without useSkin you get the bare glowing wireframe.

• Sizing. Size the canvas with CSS. The face draws at the canvas's CSS size times the device pixel ratio (capped at 2), follows resizes on its own, and keeps its proportions, centred.
• Background. The canvas is transparent. Put a colour, an image or a video behind it. Each preset has a matching background colour (PRESETS.cyan.background) if you want one.
• Cleaning up. face.destroy() stops the animation, removes the pointer listener and frees the GPU. Call it when the canvas goes away, for example when a component unmounts.

const face = createFace(canvas, {
  config: { preset: 'ember', skin: 'mei' },    // any settings; checked
  assets: '/wireface/',                        // where skins/ and voices/ are (default: the package's own)
  fit: 0.9,                                    // how much of the canvas the face fills: 0.5 to 1.2
  follow: true,                                // eyes and head follow the pointer anywhere in the window
});

Looking somewhere. With follow: false, or whenever you like, point its gaze yourself. The arguments are CSS pixels from the face's centre, with y pointing down. It looks back to the front 4 seconds after the last call, so call it again to hold a gaze.

face.view.setPointer(-300, -50);    // looks to its left, slightly up
face.view.setPointer(null);         // straight ahead

Choosing a look#

A look is a skin, how far the face has faded from the wireframe to it, and colours.

await face.useSkin('robot');                    // a skin from the catalogue
face.set({ skin_amount: 0.5 });                 // half wireframe, half skin, all over the face
face.set({ preset: 'violet', glow: 1.2, points: 0.6 });
face.config;                                    // every setting, as it is now

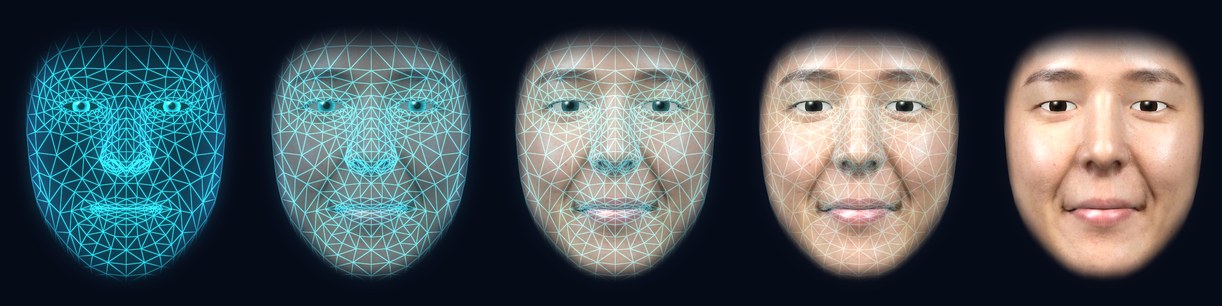

skin_amount (0 to 1, default 1) is a cross-fade from the glowing wireframe to the skin, over the whole face. 0 is the bare wireframe and 1 the whole skin. In between, the skin fades in (a little ahead) as the wireframe's lines, points, scanlines and rim fade out, and the eyes and the inside of the mouth blend from the hologram's to the skin's. Only the wireframe glows: its share keeps its glow (glow and the other hologram settings apply to it), and the skin never does. It's a setting like any other, so it applies to whichever skin is on, your own included, and it can go in a config file. It's what the Wireframe ↔ Skin slider sets in the demo, on Try it and in Wireface Desktop.

// a slider: <input type="range" id="amount" min="0" max="1" step="0.01" value="1">
amount.oninput = () => face.set({ skin_amount: +amount.value });

A new value glides in over a second or so, so a slider can set it directly. With no skin on, style: 'sculpt' fades in over the wireframe the same way.

set takes any part of the config, checks it, applies it and returns the whole config. For anything unknown or out of range it throws a ConfigError and changes nothing (colors.primary: expected #rrggbb, glow: 3 is outside 0..2). RANGES holds the limits of every number setting, which is handy for building sliders. Every setting is in the configuration reference.

The style setting (hologram, sculpt, photo) still works, for compatibility: face.set({ style: 'sculpt' }) gives a shaded head when no skin is on. Skins and skin_amount are the way to choose a look now.

Skins#

A skin is a picture of a face plus where the face's landmarks are in it. The mesh is MediaPipe's canonical face model, whose 468 vertices are the 468 landmarks MediaPipe finds in a photo, so each landmark becomes its vertex's texture coordinate and the picture becomes a 3D face. The eyes, teeth and inside of the mouth are drawn by the engine.

Wearing one#

await face.useSkin('mei');                       // from the catalogue (assets/skins/skins.json)
await face.useSkin('dracula', { sweep: 1.6 });   // scan down onto the face over 1.6 s (the old skin comes off first)
await face.useSkin('robot', { teeth: 'sharp' }); // with other teeth than the skin's own
await face.useSkin(null);                        // back to the bare wireframe

useSkin resolves once the skin is showing; until its picture has loaded, the wireframe stays up. It records the skin in the config (face.config.skin), with the teeth that go with it. Setting skin with set() puts it on too, but returns before the picture has loaded.

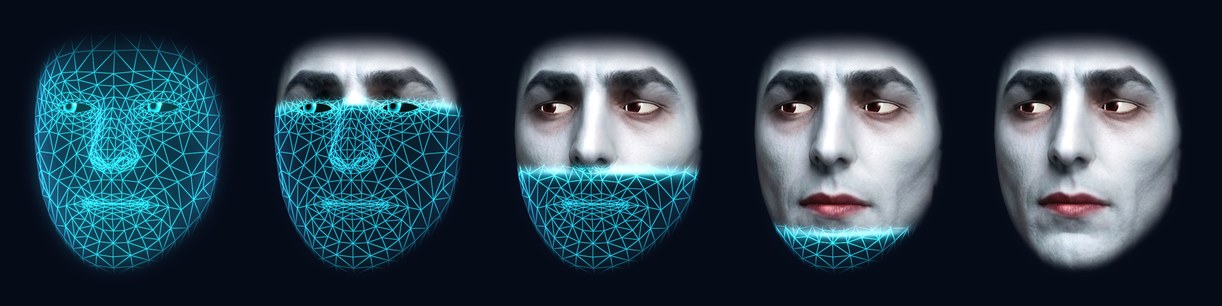

A sweep scans the new skin down the face, with a bright band at its leading edge, after scanning the old one back off. It shows as much of the skin as skin_amount says; at 0 there's nothing to see, so the skin changes at once. The sweep is only how a skin goes on and comes off: skin_amount always blends the whole face.

The included skins are mei, marcus, amara, walter, lucia, arjun, omar, ruth, robot, monster and dracula. To list them:

import { catalogue, ASSETS } from '@wireface/core';
const skins = await catalogue(ASSETS);   // [{ id, name, kind, teeth, image, thumb, landmarks }], with file URLs

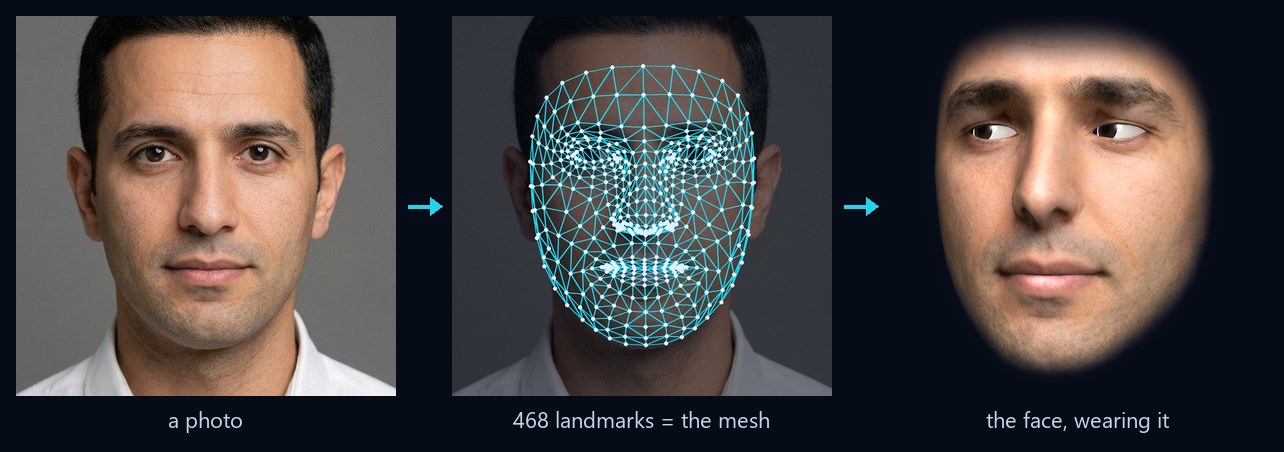

From a photo, in the browser#

import { skinFromPhoto } from '@wireface/core';

const skin = await skinFromPhoto(file);          // a File, Blob or URL
// -> { image: Blob (JPEG, at most 1024 px), landmarks: [[x, y] x 468], width, height }
await face.useSkin(skin, { sweep: 1.4 });

This loads MediaPipe's face landmarker from a CDN the first time it's used (a few megabytes of WebAssembly and model). The photo never leaves the browser. It throws "couldn't find a face in that picture" when there isn't one. To host MediaPipe yourself, pass your own paths; MEDIAPIPE holds the defaults:

await skinFromPhoto(file, { bundle: '/mp/vision_bundle.mjs', wasm: '/mp/wasm', model: '/mp/face_landmarker.task' });

Good photos are taken straight on, with the mouth closed, even light, and the face filling a good part of the frame. Painted, rendered and AI-made faces work too, robots and monsters included, as long as they're face-shaped.

Your own skin files#

A skin is two files: a picture, and a JSON array of 468 [x, y] pairs from 0 to 1, with the origin at the top left of the picture. examples/photo.html makes them from a photo and saves them. Wear them directly:

await face.useSkin({ image: '/faces/ada.jpg', landmarks: '/faces/ada.json', teeth: 'normal' });
// image: a URL or Blob; landmarks: a URL or the array itself

Or make a catalogue of your own: a folder with skins/skins.json, plus ID.jpg, ID-thumb.jpg and ID.json for each skin.

[
  { "id": "ada", "name": "Ada", "kind": "human", "teeth": "normal" }
]

const face = createFace(canvas, { assets: '/my-faces/' });
await face.useSkin('ada');

An id is lowercase letters, digits, - and _, up to 40 characters. kind is free text (the included ones use human, robot and creature). The thumbnail is only for pickers.

Teeth#

Skins show photographic teeth when the mouth opens: normal, braces, vampire, goofy, sharp and turkey. A catalogue skin brings its own ("teeth" in skins.json), which useSkin(id, { teeth }) overrides.

face.set({ teeth_style: 'vampire', teeth_width: 1.1, teeth_size: 0.9 });   // width and size: 0.5 to 1.5

Expressions, moods and states#

Expressions#

face.express('surprised');        // eases in, holds for 4 s, eases back
face.express('happy', 10);        // for 10 s
face.express('angry');            // aliases work: this is 'frustrated'

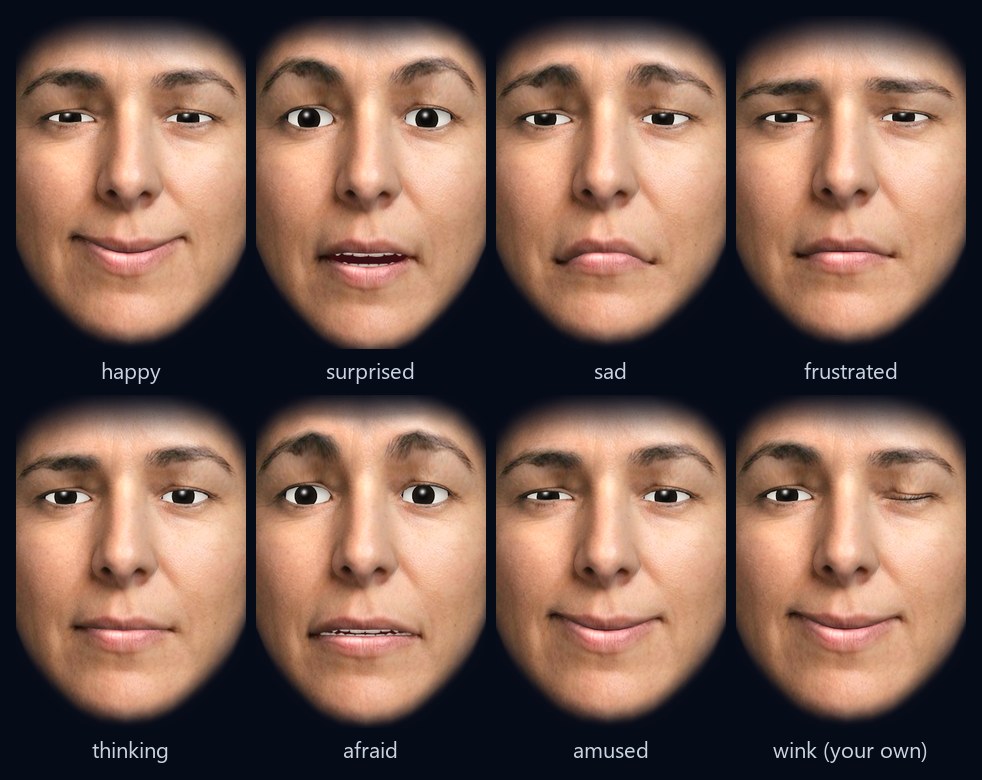

The built-in expressions (MOODS) are neutral, happy, excited, amused, surprised, curious, thinking, concerned, sad, afraid, frustrated, calm, content, bored and glum. ALIASES maps everyday words to them: smile, joy and glad mean happy; angry and annoyed mean frustrated; confused and pondering mean thinking; scared and fear mean afraid; worried means concerned; and so on. An unknown name throws. The expressiveness setting (0 to 2, default 1) scales how strongly every expression and gesture shows.

Your own#

An expression is a set of weights from 0 to 1 over the rig's channels:

import { defineExpression, CHANNELS } from '@wireface/core';

defineExpression('wink', { blinkL: 1, smileL: 0.45, smileR: 0.7, browUpR: 0.3, squintL: 0.3 });
defineExpression('smug', { smileL: 0.6, smileR: 0.1, browUpL: 0.4, squintR: 0.3 });
face.express('wink');

L and R are the face's own left and right, so blinkL closes the eye on your right as you look at it. Expressions are shared by every face on the page, and defining one with an existing name replaces it. A name is letters, digits, - and _, up to 40 characters.

Moods#

A mood is worn whenever nothing else is showing: a resting face.

face.mood('content', 0.6);    // intensity 0..1 (default 0.5)
face.mood(null);              // none

States#

States show what the face, or the agent behind it, is doing. They change the eyes, posture and pace, not just the mouth.

face.state('thinking');   // eyes up and aside, while you wait for an answer
face.state('busy');       // working
face.state('error');
face.state('muted');
face.state('asleep');     // eyes close; 'idle' wakes it
face.state('idle');

Talking#

There are three ways to drive the mouth:

Sound and autoplay#

Browsers only allow sound after the user has interacted with the page. Create your AudioContext in a click handler, or resume it there. Without an audioContext, say still moves the mouth: the face mimes.

let audioContext = null;
soundButton.onclick = () => { audioContext ??= new AudioContext(); audioContext.resume(); };

Clips#

const clip = await face.clip('dracula');                // assets/voices/dracula.json, and its audio
await face.say(clip, {
  audioContext,                                         // optional: heard as well as seen
  onCaption: text => (caption.textContent = text),      // the words so far, as they're spoken
});

face.clip(id, folder) loads folder/ID.json and the audio it names (ID.m4a if it names none). Folders may be relative to the page ('/voices/'). The eight included voices are mei, marcus, amara, walter, lucia, robot, monster and dracula (voices/cast.json lists them, with expression cues).

say resolves when the clip ends, with the AudioBufferSourceNode playing it (or null when miming). It plays one clip at a time: starting another stops the one before, and face.hush() stops it outright, sound and mouth.

A clip file looks like this. Each frame is a row of the ch values, one every hop samples (10 ms at 24 kHz), from sample s0. You can pass a clip object you made yourself, with audio as a URL or a decoded AudioBuffer.

{
  "audio": "hello.m4a",
  "text": "Hello there.",
  "duration": 1.42,
  "mouth": [{
    "sr": 24000, "s0": 0, "hop": 240, "src": "aligned", "text": "Hello there.",
    "ch": ["jaw", "wide", "round", "close", "fric", "bite", "tongue", "energy"],
    "frames": [[0.12, 0.3, 0, 0, 0, 0, 0, 0.4], "..."]
  }]
}

Live lip sync#

// a microphone
const stop = face.listenTo(audioContext, await navigator.mediaDevices.getUserMedia({ audio: true }));

// an <audio> or <video> element (streaming TTS, a podcast...); it stays audible
const stop = face.listenTo(audioContext, document.querySelector('audio'), { gain: 1.3 });

// a WebRTC call: the remote stream
peerConnection.ontrack = e => face.listenTo(audioContext, e.streams[0]);

// any AudioNode you're already playing through
const stop = face.listenTo(audioContext, myGainNode);

stop();     // back to the clip timeline

gain (default 1) opens the mouth more or less. The level adapts, so quiet and loud voices both work. Three catches:

• Each media element can be connected only once (the Web Audio API's rule), so keep one listenTo per element.
• Cross-origin audio needs CORS (crossorigin="anonymous" and the server's header). Otherwise the browser hands the analyser silence and the mouth stays shut.
• Chrome only passes a remote WebRTC stream's audio to Web Audio while the stream is also attached to a media element, so keep it playing in an <audio> as well.

Streamed speech#

For a voice that arrives as raw PCM while it's being spoken, such as Gemini Live's 24 kHz 16-bit audio or a streaming TTS, StreamVoice plays the pieces without gaps and works out the mouth from each one before it's heard. It's much closer to a clip than listenTo: the lips close on m, b and p, and nothing lags behind the sound, for a quarter of a second of buffering before the voice starts. The face on Try it talks to Gemini Live this way.

import { StreamVoice } from '@wireface/core';

const voice = new StreamVoice(face, audioContext);    // { sampleRate: 24000, buffer: 0.25 }
voice.onEnd = () => {};                               // the reply has finished playing
voice.push(int16Chunk);                               // each piece as it arrives
voice.end();                                          // the reply is all in
voice.stop();                                         // the user spoke over it: silent at once
voice.position;                                       // samples heard so far, to keep captions in step

Each piece is mono, at sampleRate: an Int16Array of 16-bit PCM, or a Float32Array from -1 to 1. face.hush() stops it too.

MouthTracker is the part that turns audio into mouth frames, for when you play the sound yourself: feed(samples, index) takes samples (a Float32Array) and the player's sample count at the first of them, and returns timeline packets for face.view.timeline.add(). flush() finishes an utterance, and cancel() drops what hasn't been sent when speech is cut off. MOUTH_CHANNELS names the channels in each frame.

import { MouthTracker } from '@wireface/core';

const tracker = new MouthTracker(24000);
for (const packet of tracker.feed(samples, index)) face.view.timeline.add(packet);
// ...and when the utterance ends
for (const packet of tracker.flush()) face.view.timeline.add(packet);

Fine tuning#

• mouth_gain (0.3 to 2) scales the lip-sync movement, for clips and live.
• sync_offset_ms (-200 to 200): positive values make the mouth move later. Use it if your audio path adds latency. For clips, the face already allows for the AudioContext's own output latency.

Making clips#

The tools need Python 3.10 or newer with numpy (pip install -r tools/requirements.txt). ffmpeg is needed for audio that isn't WAV, and to write .m4a.

From text#

Gemini text-to-speech, then the mouth track. It needs GEMINI_API_KEY (or GOOGLE_API_KEY).

python -m tools.voice "Good evening." --voice Charon --style "Say slowly, like Count Dracula" -o my-voices/dracula

This writes dracula.m4a (or .wav without ffmpeg) and dracula.json. --voice defaults to Kore. --style says how to say it and isn't spoken. Some voices: Kore, Leda, Aoede, Sulafat (female); Charon, Puck, Achird, Iapetus (male).

From any audio#

Your own recordings, or any TTS (ElevenLabs, OpenAI, Azure, anything):

python -m tools.lipsync line.wav --text "Hello there." -o my-voices/line.json
python -m tools.lipsync --get-lexicon          # once: a pronunciation lexicon, for better alignment

With --text, the words are aligned to the sound phoneme by phoneme, so the lips meet on every m, b and p. Without it, or when alignment fails, the shapes come from the sound alone. Without -o, the clip is written next to the audio. The clip records where the audio is relative to itself, so face.clip('line', '/my-voices/') finds it.

Config files#

Every setting can live in a JSON file, checked when you load it and described by a JSON Schema so editors autocomplete it. See Config files for wireface-core, and every setting in the configuration reference.

const face = createFace(canvas, { config: await (await fetch('face.json')).json() });

Events#

const off = face.on(ev => {
  if (ev.type === 'speaking') console.log(ev.text != null ? `speaking: ${ev.text}` : 'stopped speaking');
  if (ev.type === 'caption') console.log('caption', ev.text);
});
off();    // unsubscribe

speaking comes when the face starts talking (with the clip's text, or an empty string for live lip sync) and when it stops (text: null). caption carries the sentence now reaching the speaker.

API reference#

createFace(canvas, options)#

Returns a Wireface (also exported, as a class: new Wireface(canvas, options)).

Wireface#

Other exports#

Recipes#

A face for an AI agent#

async function ask(question) {
  face.state('thinking');
  const reply = await callYourAgent(question);           // your LLM or agent
  face.state('idle');
  face.express(reply.mood ?? 'happy', 5);                // let the model choose: give it MOODS as options
  const audio = new Audio(await textToSpeechUrl(reply.text));
  audio.crossOrigin = 'anonymous';
  const stop = face.listenTo(audioContext, audio);
  audio.onended = stop;
  await audio.play();
}

For the best lip sync, run your TTS output through tools/lipsync on the server, send the clip JSON with the audio, and face.say() it instead.

React#

import { useEffect, useRef } from 'react';
import { createFace } from '@wireface/core';

export function Face({ skin, mood }) {
  const canvas = useRef(null);
  const face = useRef(null);
  useEffect(() => {
    face.current = createFace(canvas.current, { assets: '/wireface/' });
    return () => face.current.destroy();
  }, []);
  useEffect(() => { face.current.useSkin(skin ?? null, { sweep: 1.2 }); }, [skin]);
  useEffect(() => { face.current.mood(mood ?? null, 0.6); }, [mood]);
  return <canvas ref={canvas} style={{ width: 360, height: 400 }} />;
}

The same pattern works in Vue (onMounted and onUnmounted), Svelte (onMount returning destroy) and elsewhere: create once, destroy on the way out.

Several faces#

Each createFace is independent, with its own canvas, config and skin. Each uses a WebGL context, and browsers cap how many a page may have (16 in Chrome), so for a crowd, use fewer, larger canvases. Expressions made with defineExpression are shared by all of them.

Over a video or a page#

The canvas is transparent. Position it over anything, and set pointer-events: none on it if clicks should go through.

Coming and going#

await face.disappear();    // glitches, then burns away from the chin up
await face.appear();       // materialises from the top down

Under the hood#

The API in src/index.js sits on the engine in src/engine/, the same code that runs in Wireface Desktop.

face.view is the FaceView, if you need more than the API gives you: for example view.sweep(to, seconds) (the scan that puts a skin on, cross-faded as skin_amount says), view.setPointer(x, y), or view.timeline to feed mouth packets from a stream. LiveLipSync shows how to stand in for the timeline: it implements sample() and returns the mouth channels for this moment.

Examples and the demo#

Run npm start and open http://127.0.0.1:5173/:

• /demo/, the playground: skins (including your own photo), the Wireframe ↔ Skin slider, colours, teeth, motion, expressions, clips and microphone lip sync, with the face's config as a file you can copy or download.
• /examples/, one short page per feature: hello, skins, expressions, talk, live, photo and config.

Problems? See wireface-core troubleshooting.

Working on core#

npm start          # http://127.0.0.1:5173/ (PORT=8080 npm start for another port)
npm test           # node --test: config, schema, assets, loading

• The examples are the quickest way to try a change.
• The demo builds its controls from RANGES, PRESETS, TEETH_STYLES and the catalogue, so new settings show up there.
• New settings go in src/config.js (default, range, check) and config/face.schema.json. A test keeps the two in step.
• The engine is shared with Wireface Desktop. Change it in core first, then copy it across.

Browsers and licence#

It runs in any browser with WebGL2 and ES modules: Chrome, Edge, Firefox, and Safari 15 and later. Each face uses one WebGL context.

The face mesh is MediaPipe's canonical face model (Apache-2.0). The portraits and characters were made with AI image generation, and the voices with Gemini text-to-speech; the NOTICE file lists the third-party parts. wireface-core is free for personal and non-commercial use under the PolyForm Noncommercial License 1.0.0. Using it at work, for clients, or in a product or service you sell needs a commercial licence.
